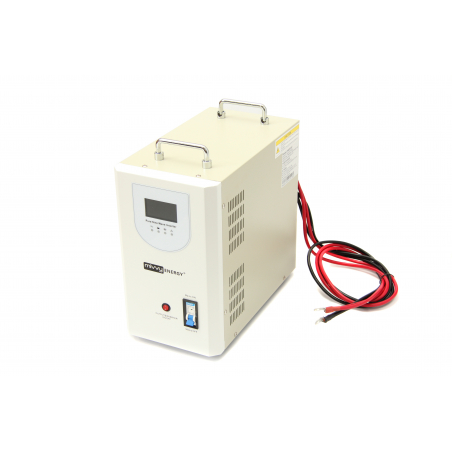

AC/DC inverter, charger and 3000VA UPS

The HB3024 is a compact device combining a pure sine wave inverter, battery charger and a 2400W / 3000VA UPS backup power supply. To use the backup power function you will need to connect batteries of your chosen capacity. It is compatible with common battery types such as lithium, AGM or gel batteries. With this UPS, you will be sure that in the event of a power failure, your connected appliances will be powered for the necessary time. This device is ideal for offices, home offices, server rooms and more. The UPS has an instant response to switch to battery power mode. The built-in inverter then takes care of the output in the same quality as mains power.

UPS s měničem AC/DC

Backup power supplies for uninterrupted access to electricity

The battery back-up power supply has a display for an overview of the current status of the device such as battery capacity, load level, input/output voltage values and other information. The AC/DC inverter uses an innovative toroidal transformer design to ensure high efficiency of the device. It also features a 32-bit microprocessor for precise operation and an intelligent cooling system based on current status (power on, charging, high temperature).

měniče s UPS



Technical specifications:

  • constant power: 2400W
  • peak power: 3000VA
  • input voltage: 145~275V AC
  • output voltage: 230V AC
  • output current: 4A
  • output ripple: pure sine wave
  • efficiency: ≥94%
  • operating temperature: -10°C~50°C
  • CE/RHOS/IEC certification


Additional features:

  • High-efficiency, low-idle toroidal transformer
  • Fast 32-bit processor for accurate and smooth operation
  • Color LCD display for intuitive operation
  • Generates clean sine wave voltage at output
  • Quick switch from mains power to UPS mode
  • Intelligent cooling fan
  • For lithium, AGM and gel batteries


The device is a UPC with built-in AC/DC converter and automatic battery charging.


Package includes: 1x UPS


mivvy ENERGY

Features

Dimensions (W × H × D)
385×190×345 mm
Rated power
2400W
For battery type
LiFePO4
gel battery
lead-acid battery
Waveform
pure sine wave
Output voltage
230V
System voltage
24V
Frequency
50Hz
Input voltage
145~275V
Model
HB3024

Download

Manual for UPS with inverter

Download (2.16MB)
