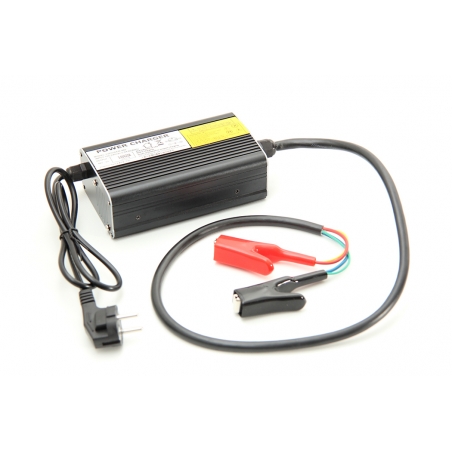

Charger 3,65V 20A / 230V
Device designed for charging LiFePO4 cells.
*image for illustration only, actual product may vary
Price excl. VAT: 1,321 Kč
![Price history](https://www.mivvyenergy.cz/modules/dm_historyprice/views/img/graph-24.png)
Lowest price in the last 30 days before discount 1,599 Kč
Technical specifications
Battery type: LiFePO4 (1 pc)
Operating voltage: 100 V ~ 230 V @ 50 Hz ~ 60 Hz
Charging voltage: 3.65 V
Disconnect voltage: 3.65 V ± 0.05 V
Maximum current: 20 A
Weight including parts: 860 g
Material: aluminum
Connector cable length: approx. 85 cm
Operating temperature range: 10 ° C ~ 40 ° C at relative humidity up to 90%
Dimensions (W × H × D): 95 × 165 × 52 mm
Device designed for charging LiFePO4 cell.
The red connector to the plus battery, the black to the minus battery. When the cell are fully charged, charging will end automatically.
LEDs: green LED left = operation; LED right = green> ready to charge or charging complete; red> charging.
Features
- Dimensions (W × H × D)
- 95 × 165 × 52 mm
- Maximum current
- 20A
- For battery type
- LiFePO4 (1pc)
- Operating voltage
- 3.65V
