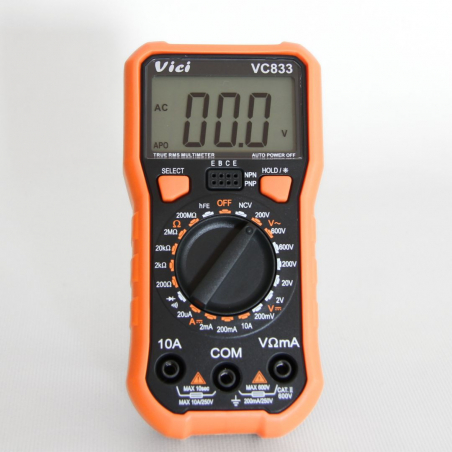

Digital Multimeter VC833

Digital Multimeter VC833

This meter offers a wide range of functions for DC and AC voltage and DC current measurements, resistance measurements, diode tests, continuity and transistor test.

VC833 multimeter and its features

The backlit display with HOLD function makes it easy to read and store measurement results. NCV and TrueRMS functions increase accuracy, while transistor, continuity and diode tests provide reliable results. Overload protection and automatic shutdown enhance safety. The VC833 multimeter is suitable for home use, educational purposes and professional work.

Technical specifications:

• Power supply: battery: 2 pcs 1.5V (AAA) batteries
• Automatic shutdown: approx. 15 minutes
• Power consumption: quiescent current approx. 2mA
• Input impedance: 10MΩ
• Continuity alarm: less than 50Ω
• Max. Display: 2000
• DC input voltage:200mV / 20V / 200V / 600V, accuracy: ±0.5%
• DC input current: 20μA / 2mA / 200mA / 10A, accuracy: ±1.0%
• AC output voltage:
• 200 / 600V , accuracy: ± 1.0%
• Frequency: 40Hz ~ 400Hz
• Resistance: 200Ω / 2kΩ / 20kΩ / 2MΩ / 200MΩ, accuracy: ± 0.8%
• Operating conditions: 0˚C - 40˚C, relative humidity resp. (RH) <75 --75--="">
• Storage conditions: -10˚C ~ 50˚C, Relative Humidity (RH): <80 --80--="">
• Display size (W × H): 51 × 28mm
• Certification: EMC, RoHS, CE

The package contains:

1 × Digital Multimeter VC833

1 × Battery

1 × manual

1 × test leads

1 × rubber case (cover)

Features and functions:

Backlit LCD display.

LED light.

HOLD function - freezes the result on the display.

NCV function - non-contact AC voltage detection.

True RMS function - improves the accuracy of current or voltage measurement.

Function hFE test.

Data retention function.

Low battery indication.

Automatic polarity indication.

Automatic shutdown within 15 minutes.

Overload protection.

Meets safety standard EN61010-1 for CAT II 600V.

Transistor, continuity and diode test.

Product usage:

The multimeter can measure electrical resistance, voltage and current.

It is a great tool for educational purposes, home use and for hobby electronics.
