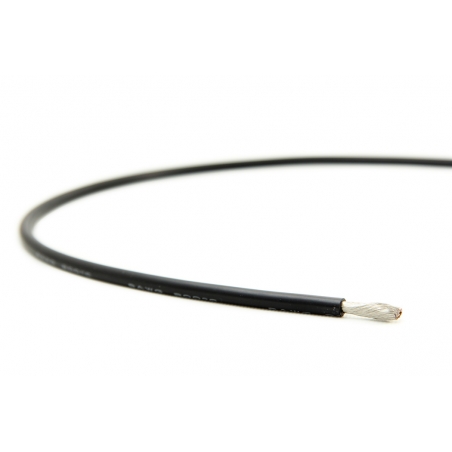

Silicone cable 8AWG, black
CABLE8AWGBLACK
8AWG cable made of nickel-plated copper, finely braided in black silicone sleeve.
Price is for 1 meter.
! Cancellation of the order is not possible if the ordered material has already been modified in any way (e.g. cut) according to the customer's wishes. !
Price: Kč70
Price excl. VAT: Kč58
Price excl. VAT: Kč58
Price history
Lowest price in the last 30 days before discount Kč70
Comparison table of cable parameters
| Cable type | Colour | Cross section | Diameter | Insulation | Overall diameter | Resistance | Max. current | Weight |
| 2AWG | black | 33.5 mm² | 7.75 mm | 2.4 mm | 13 mm | 0.89 Ω/km | 200 A @ 20 °C | 0.21 kg/m |
| 4AWG | black, blue, red | 25 mm² | 6.55 mm | 2.4 mm | 11 mm | 1.25 Ω/km | 180 A @ 20 °C | 0.3 kg/m |
| 5AWG | black, blue, red | 20 mm² | 5.85 mm | 1.85 mm | 9.5 mm | 1.5 Ω/km | 160 A @ 20 °C | 0.24 kg/m |
| 6AWG | black, blue, red | 16 mm² | 5.25 mm | 1.65 mm | 8.5 mm | 1.9 Ω/km | 140 A @ 20 °C | 0.19 kg/m |
| 8AWG | black, blue, red | 8.25 mm² | 3.75 mm | 1.35 mm | 6.5 mm | 3.7 Ω/km | 80 A @ 20 °C | 0.1 kg/m |
! Order cancellation is not possible if the ordered material has already been modified (e.g. cut) in any way according to the customer's wishes.
Features
- Colour
- Black
- Operating temperature range
- -60 °C ~ 200 °C
- Made of
- Nickel-plated copper, silicone trim
- Maximum voltage range allowed
- up to 600 V
- Maximum current
- 80 A @ 20 °C
- Diameter
- 3.75 mm
- Cable cutting area
- 8AWG / 8.25 mm²
8AWG cable made of nickel-plated copper, finely braided in black silicone sleeve.
Price is for 1 meter.
! Cancellation of the order is not possible if the ordered material has already been modified in any way (e.g. cut) according to the customer's wishes. !
