Industrial power connectors DC, QLB SurLok 120A 1000V. 2 pairs (female + male) of cable connectors included.

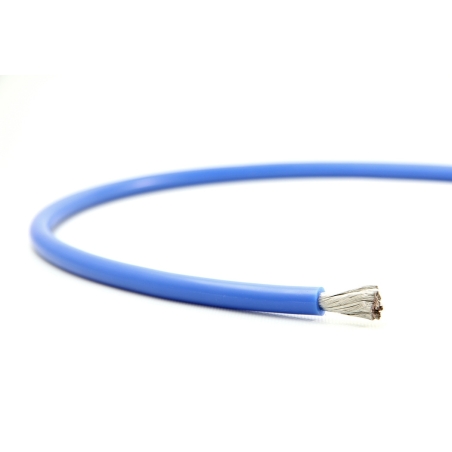

Silicone cable 5AWG, blue
CABLE5AWGBLUE
5AWG cable made of nickel-plated copper, finely stranded in blue silicone sleeve.
Price is for 1 meter.
! Cancellation of the order is not possible if the ordered material has already been modified in any way (e.g. cut) according to the customer's wishes.
Price: Kč172
Price excl. VAT: Kč142
Price excl. VAT: Kč142
Price history
Lowest price in the last 30 days before discount Kč172
Comparison table of cable parameters
| Cable type | Colour | Cross section | Diameter | Insulation | thicknessOverall diameter | Resistance | Max. |
| Current |
| black | 33,5 mm² |
| ,75 mm | |
| ,4 mm | 13 mm |
| ,89 Ω/km | 200 A @ 20 °C |
| ,21 kg/m |
| black, blue, red | 25 mm² |
| ,55 mm | |
| ,4 mm | 11 mm |
| ,25 Ω/km | 180 A @ 20 °C |
| ,3 kg/m |
| black, blue, red | 20 mm² |
| ,85 mm | |
| ,85 mm | |
| ,5 mm | |
| ,5 Ω/km | 160 A @ 20 °C |
| ,24 kg/m |
| black, blue, red | |
| ,25 mm² | |
| ,75 mm | |
| ,35 mm | |
| ,5 mm | |
| ,7 Ω/km | 80 A @ 20 °C |
| ,1 kg/m |
! Order cancellation is not possible if the ordered material has already been modified (e.g. cut) in any way according to the customer's wishes.
Features
- Colour
- Blue
- Operating temperature range
- -60 °C ~ 200 °C
- Made of
- Nickel-plated copper, silicone trim
- Maximum voltage range allowed
- up to 600 V
- Maximum current
- 160 A @ 20 °C
- Diameter
- 5.85 mm
- Cable cutting area
- 5AWG / 20 mm²
5AWG cable made of nickel-plated copper, finely stranded in blue silicone sleeve.
Price is for 1 meter.
! Cancellation of the order is not possible if the ordered material has already been modified in any way (e.g. cut) according to the customer's wishes.
